Lambretta Brass Cable Trunnion - Short - Outer Gear - Clutch Cable - BGM PRO - Oversize
$ 5.89
L-BGM6498P
Innocenti #
Lambretta Brass Cable Trunnion - Short - Outer Gear - Clutch Cable - BGM PRO - Oversize
Description

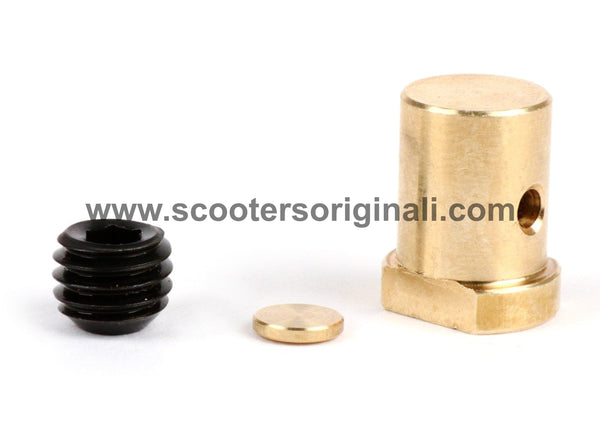

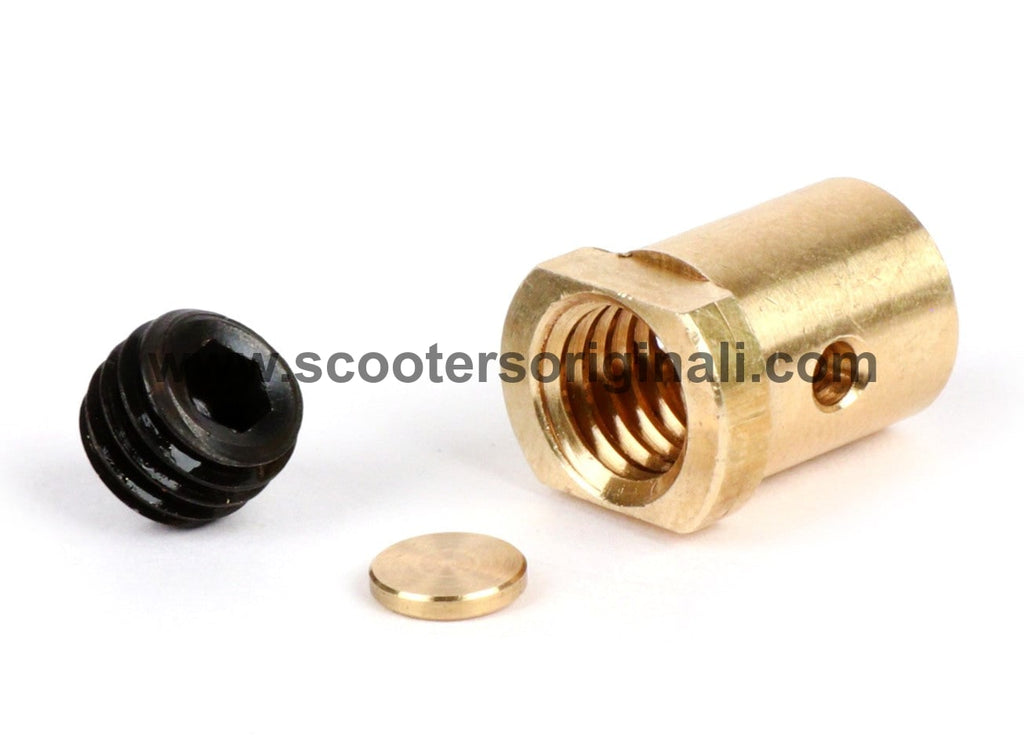

BGM PRO Oversize screw/clamp nipple in an excellent quality, manufactured by a supplier for the Japanese motorcycle industry.
The BGM PRO Oversize types have five special features:
Manufacturing to oversize (Ø10.06mm)
Separated waistband at the top end
With spanner flat for counterholding (SW=9mm)
With 3.5mm hexagon socket (like original Innocenti)
With internal clamping plate to protect the cable
OVERSIZE
The oversize makes the screw nipples fit perfectly in used gear scales. If necessary, grind out new shifting paddles minimally.
BUND
The collar at the upper end prevents the screw nipple from slipping into the shifting balance. The mounting of the cables is therefore much more comfortable. Insert the screw nipple into the shifting rocker, the threading of the cables is done clean and easy without a second hand.
Wrench flat
The wrench flat allows the clamping screws to be tightened without the need for the tension to act as a counterholder for the tightening torque. The screw nipple is fixed with a conventional open-end wrench (wrench size 9). This prevents the pull wire from buckling. The Bowde remains straight.
CLAMPING SCREW
The clamping screw has, as in the original, a hexagon socket screw with a wrench size of 3.5mm. The screws can be tightened with the 3.5mm Allen key with ball head, also available from BGM. The ball head allows a lateral deflection. This means that the coupling cable remains in place when the gear cables are attached.
CLAMPING PLATE
The screw nipple has an internal plate. The rotation of the screw is not directly transmitted to the cable. This protects the inner cable of the Bowden cable and helps to ensure a long life and reliability.
ASSEMBLY
Remove the clamping screw of the screw nipple, take out the internal plate. Insert the screw nipple into the gear shifting/clutch arm. Lead the cable through the bore of the screw nipple. Insert clamping plate into the screw nipple. Place open-ended spanner (spanner width 9) on the spanner flat of the screw nipple. Tighten the clamping screw.
