Lambretta Brass Cable Trunnion - Long - Inner Gear Cable - BGM PRO - Oversize

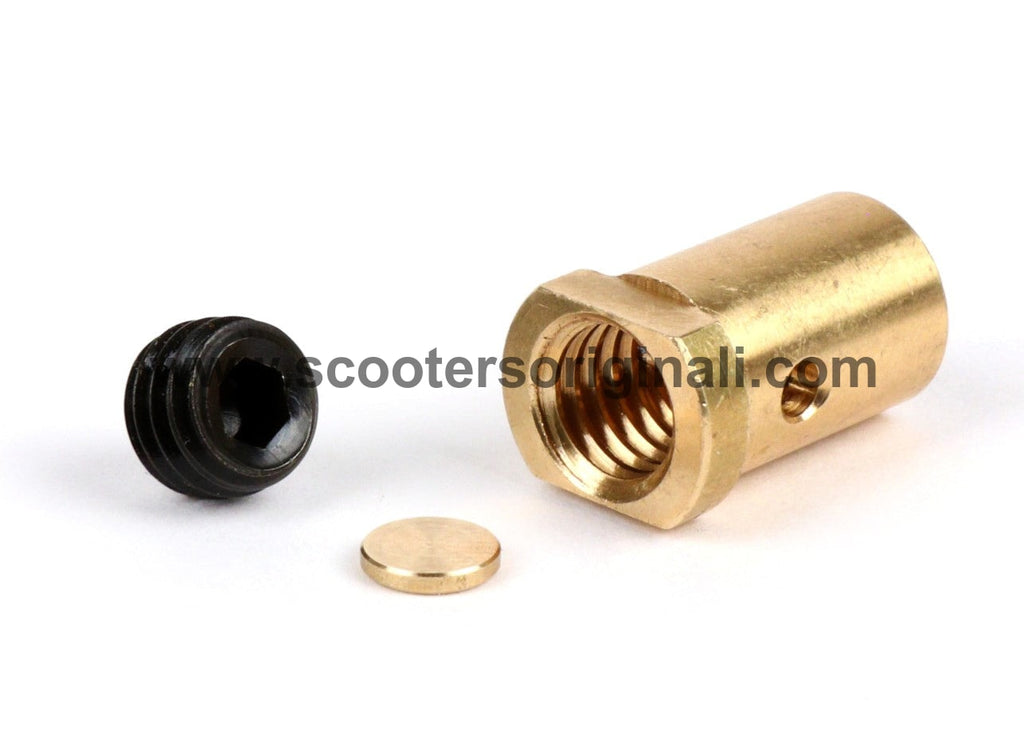

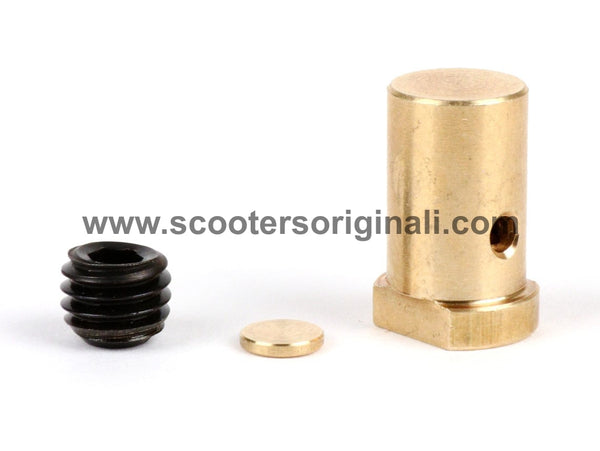

BGM PRO Oversize screw/clamping nipple in an excellent quality, manufactured by a supplier for the Japanese motorcycle industry.

The BGM PRO Oversize types have five special features:

• Manufacturing to oversize (Ø10.06mm)

• Separated waistband at the top end

• With spanner flat to hold against (SW=9mm)

• With 3.5mm hexagon socket (like original Innocenti)

• With internal clamping plate to protect the cable

OVERSIZE
The oversize allows the screw nipples to fit perfectly in used gear scales. If necessary, grind out new shift paddles minimally.

BUND
The collar at the upper end prevents the screw nipple from slipping into the switch scale. This makes the mounting of the cables much more comfortable. Insert the screw nipple into the rocker switch, so that the cables can be threaded cleanly and easily without a second hand.

Wrench flat
The wrench flat allows the clamping screws to be tightened without the tension having to serve as a counter support for the tightening torque. The screw nipple is fixed with a conventional open-end wrench (wrench size 9). This prevents the pull wire from buckling. The Bowde remains straight.

CLAMPING SCREW
The clamping screw has, as in the original, a hexagon socket screw with a wrench size of 3.5mm. The screws can be tightened with the 3.5mm Allen key with ball head, also available from BGM. The ball head allows a lateral deflection. This means that the coupling cable remains in place when the gear cables are attached.

CLAMPING PLATCHES
The screw nipple has an internal plate. The rotation of the screw is not directly transmitted to the cable. This protects the inner cable of the Bowden cable and helps to ensure long life and reliability.

ASSEMBLY
Remove the clamping screw of the screw nipple, remove the inner plate. Insert the screw nipple into the gear shifting/clutch arm. Pass the cable through the hole in the screw nipple. Insert clamping plate into the screw nipple. Place open-ended spanner (spanner width 9) on the spanner flat of the screw nipple. Tighten the clamping screw.
